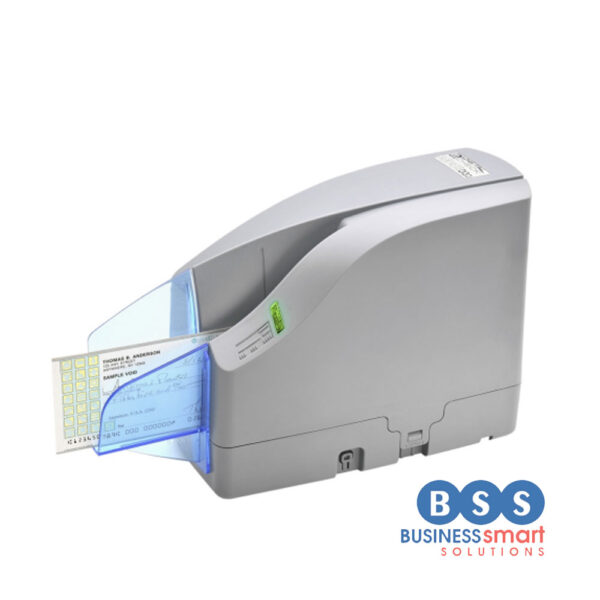

CheXpress® CX30

Extremely Fast, Remarkably Quiet

At a rated speed of one second per scan the CX30 makes
process over a million items during its life, which is the quick work of any deposit. Concerned about noise? Don’t
highest duty cycle of any scanner in its class. be. The CX30 is remarkably quiet and suited for any work
environment

Precision Built and Tested

The CheXpress CX30 is built with perfection in mind, built with a metal baseplate and both assembled, and computer-control tested against 141 data points before leaving its U.S.A based manufacturing facility.

Optional Feature

The CheXpress CX30 is available with a UV cheque capture capability.

Worry-Free Reliability

Our scanners are engineered to last. The CX30 will process over a million items during its life, which is the highest duty cycle of any scanner in its class.

Here, There, Anywhere

We know desktop real estate is at a premium. The CX30’s economical footprint and flexible cable management system means you won’t have an issue finding it a home in your workspace.

Pass Through Feed Option

Users can choose between “scan and return or “pass through scan modes. With “pass through”, scanned items follow a straight paper path and exit through the rear of the scanner. Ideal for kiosks and other self-service settings.

Improved Business Productivity

The CheXpress CX30 provides faster and better deposit capture cheque scanning that allows you to scan many cheques in a matter of minutes, thus improving the quantity and quality of your business productivity.

The Ultimate in Low Maintenance

Maximise productivity and avoid hardware headaches. The CX30’s simple transport design means minimal user maintenance required.

Extremely Fast, Remarkably Quiet

At a rated speed of one second per scan the CX30 makes quick work of any deposit. Concerned about noise? Don’t be. The CX30 is remarkably quiet and suited for any work environment.

Image and MICR Quality is Everything

Featuring high performance front and rear image cameras with dual pass MICR read-head capability, the CX30 is truly in a class of its own. With our special document handling technologies, even the most challenging money orders and checks written with gel pen ink are a snap to process.

Encrypted Card Reader

The CX30 becomes a complete merchant check imaging and credit card payment processing machine with the addition of the optional DockXpress encrypted card reader. Designed to fit underneath any CX30 scanner, the DockXpress provides the strongest security for your credit and debit card transactions by encrypting sensitive data as soon as the card is swiped.

Bank Quality Construction at a Smaller Price

This low-cost powerhouse is built with a metal baseplate and long-lasting components. It has high-quality image sensors and MICR read head, to give the highest accuracy and reliability.

Cost Efficient

The CheXpress CX30, capable of remote deposit capture cheque scanning has one of the most competitive pricings in the market.

Camera Specs (Scanning Method)

• Concurrent Two-Sided Duplex
• Resolution: 300 dpi (850 Pixel Linear Array)
• Light Source: Tri-Color LEDs
• Optional Front Ultraviolet Camera

Supported Operating Systems

• Windows® XP
• Windows Vista® (32/64 bit)
• Windows 7® (32/64 bit)
• Windows 8® (32/64 bit)
• Windows 10® (32/64 bit)

Electrical

• Power Consumption: 24 Watts
• Input Voltage: 100 to 240 VAC, 50/60 Hz
• Separate Standard Power Supply: Auto sensing for voltage

Standard Warranty

• 1 year warranty

Environmental

• Operating Temperature: 60° – 90° F (15° – 32° C)
• Operating Humidity: 35 – 85% non-condensing

Certifications

• Safety: UL, cUL, CE
• FCC: Class B (Industrial, Business or Home)
• EMC: IEC CE
• Efficiency: CEC V 115V – Power Supply
• RoHS Compliant

Document Handling

• Entry Pocket: 1 item at a time
• Exit Pocket: 5 items if Pass Through mode is enabled
• Document Height: 2.12” – 4.25” (54 – 108 mm)
• Image Capture Height: Up to 4.177” (106 mm)
• Document Length: 3.19” – 8.98” (81 – 228 mm)
• Document Weight: 16 – 28 lb. bond (60 – 105 gsm)
• Document Thickness: 0.0032” – 0.0058” (0.081 – 0.147 mm)

Printer Option

Single line inkjet printer with user replaceable cartridge

Franker Option

User replaceable red ink stamp

MICR Recognition

• (Magnetic Ink Character Recognition) for E13B
• (North America) and CMC7 (Europe)
• Optical Character Recognition to enhance MICR Read,
• further enhanced using DCC’s Best Read™ API function

Connectivity

Mini-B USB 2.0 cable and power supply included

Size

H: 7.47” (18.97 cm) W: 3.92” (9.96 cm) L: 9.38” (23.83 cm)

Weight: 3.95 lbs. (1.8 kg)
