- Flatbed feed for individual documents
- Automatic gap adjustment of the print head (auto thickness detection)
- Automatic alignment of forms and passbooks (auto skew detection)
- Automatic edge detection (auto left margin detection)
- Multi interface connection via serial, USB or parallel
- Multiple emulation options

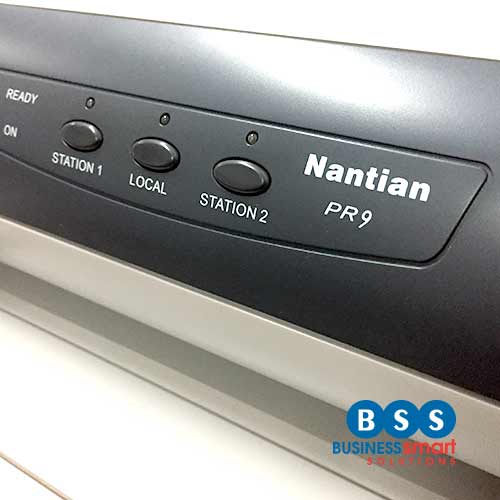

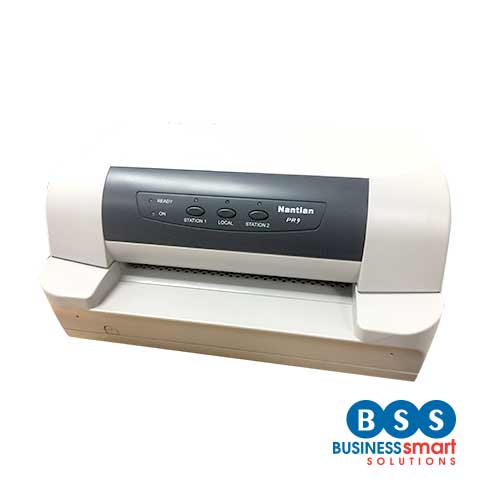

Nantian Passbook Printer – PR9
The PR9 is the All-In-One business printer catered for single-sheet, multiple-ply or passbook documents.
The PR9 is the product of speed, efficiency and affordability. It uses ribbon cartridge to ensure value for money, being able to deliver up to 7 million characters per cartridge. With a 24-pin print head the PR9 is designed to deliver superb printing quality at competitive speeds even with a work load of more than 300 transactions.
Prints on variety of print media including passbooks, slips, cheque, multi-part forms (not string-bound), and envelopes that come in wide range of sizes and thickness. Flexible system integration with multiple emulation options.
The PR9 is able to handle a full range of documents from :
- Bank teller forms (e.g. Deposit certificates, withdrawal slips, cashier’s checks, etc.)
- Multiple-ply documents and multi-part forms (up to 6 copies plus the original, not string-bound)
- Passbooks (not string-bound)
- Cheques (not MICR characters)
- Envelope-size documents
- Security documents (e.g. bonds, Letter of Appreciation, etc.)
- Any other documents that cannot be bent
This allows for user-friendly document handling without the need for manual adjustments, creating a smooth, error-free work flow. It also means that the PR9 can handle various document types and sizes without the need to make tedious configuration changes.

|
Print technology
|
24-pin, continuous torm serial impact dot matrix
|
|
Print speed
|
DRAFT DP NLQ LQ
|
|
10cpi 570cps 414cps 207cps 140cps
|
|
|
12cpi 684cps 497cps 248cps 168cps
|
|
|
Character sets
|
ISO 8859/1-9, ISO 8859/15, Olivetti code tables (7bil & 8bit), Code Pages 210, 220, 437, 850-858, 860-866, 12SO-1257,
|
|
vertical expansion, italic
|
|
|
Fonts
|
Arabic, Roman, Sans Serif, Italic, OCR-A, OCR-B, Chinese and other national character sets
|
|
Bar codes
|
Interleaved 2/5, Industrial 2/5, EAN-8, EAN-12, Code 39, 128, Codabar, UPC/A, UPC/E
|
|
Character spacing: 5, 10, 12, 12.9, 15, 16.6, 17.1, 18, 20, 30 cpi
|
|
|
Line spacing: 6, 8, lpi, n/60, n/72, n/180, n/Z16, n/360 per inch
|
|
|
Print line length: 94 characters @ 10 cpi
|
|
|
Resolution
|
360 x 360 dpi (Hxv)
|
|
Paper handling
|
Cut sheet and passbooks from front; fanfold from rear (for model equiped with tractor feeder option)
|
|
Automatic document alignment
|
|
|
Automatic document edge sensing
|
|
|
Automatic pressure adjustment depending on paper thickness
|
|
|
Passbook specifications: thickness: max. 2.0 mm; width: 110 mm – 241 mm
|
|
|
Single Sheet Width: 80 – 245 mm
|
|
|
Single Sheet Weight: 30 to 160g/m2; Formsets up to 240 g/m2
|
|
|
Copies: 1 original + 6 copies
|
|
|
Emulation
|
IBM® Proprinter ll / X24; IBM® 9068; Epson® LQ 1600K; Olivetti PR2E/PR40+; OKI 5530SC
|
|
Interface and connectivity
|
Standard: Serial RS-232
|
|
Additional Options: Parallel IEEE 1284 / Parallel + USB 2.0 / Znd Serial RS-232 / USB 2.0 / 2nd Serial RS-232 + USB 2.0 / LAN
|
|
|
Optional devices
|
Magnetic strip reader/writer
|
|
Tractor leeder for continuous forms (available for PR90-T)
|
|
|
MICR reader
|
|
|
Scanner
|
|
|
Input data buffer
|
64 K
|
|
Memory
|
16 MBytes
|
|
Diagnostics
|
Selftest, hexdump, remote diagnostics via interface, Unique ID-number
|
|
Reliability
|
MTBF: 10,000 hours @25% duty cycle
|
|
Consumables
|
Type: Black ribbon cartridge; Life: 7 million characters (10 million characters available)
|
|
Print head life
|
> 600 million dots/needle (400 Million characters)
|
|
Physical
|
Dimensions (w x d x h): 398 x 296 x 201 mm; Weight: 9 kg
|
|
Operating environment
|
Temperature: 5° to 35° C
|
|
Relative humidity: 15-85%
|
|
|
Acoustics: <54 dBA
|
|
|
Voltage: 110V +/- 10% and 240V +/- 10%
|
|
|
Frequency: 50 – 60 Hz
|
|
|
Power consumption: 11w-70w
|
|
|
Regulatory
|
VDE/GS, UL, CE, CCC, FCC-B
|
|
Warranty
|
Standard one-year
|
